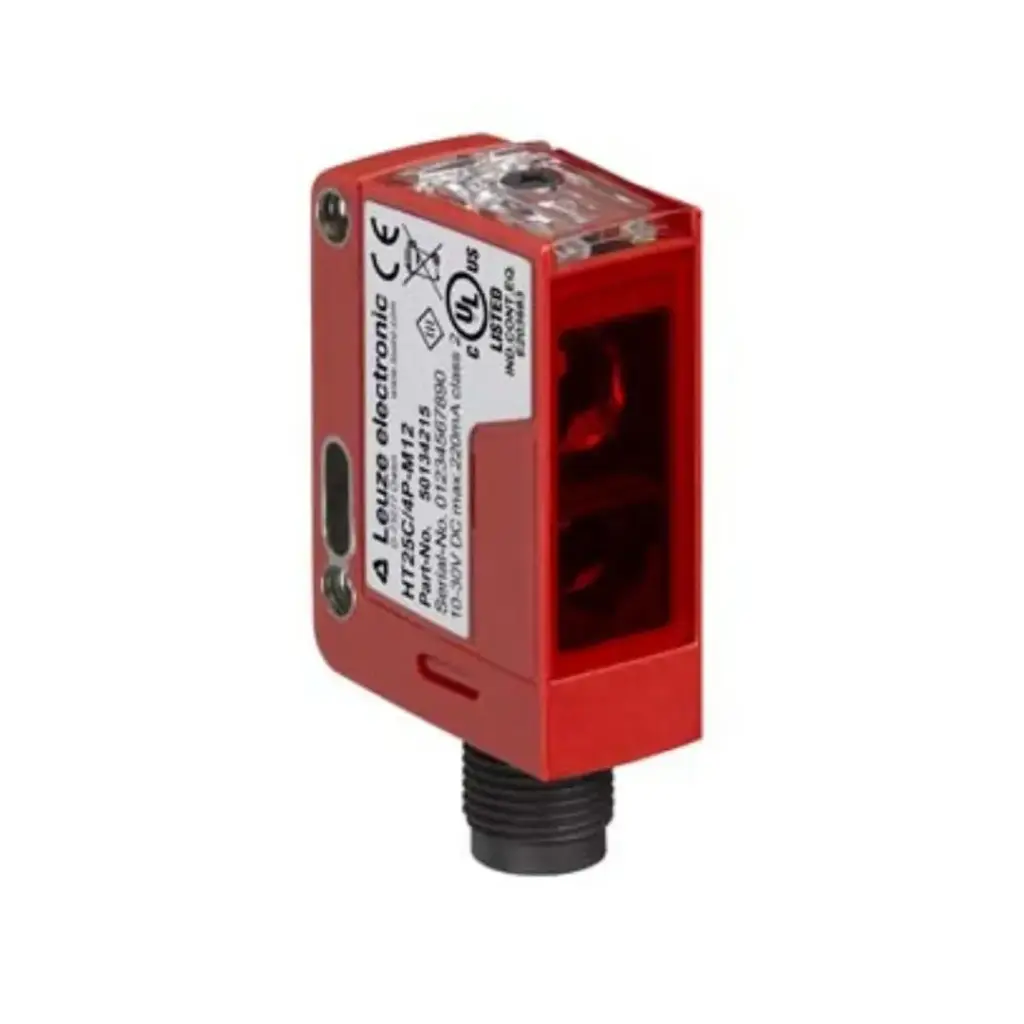

Leuze make HT25C.X/4P-M12 Polarized retro-reflective photoelectric sensor – 50143103

Leuze HT25C.X/4P-M12 – Diffuse Sensor with Background Suppression, Series 25C

The Leuze HT25C.X/4P-M12 is a diffuse sensor with background suppression designed for fast and reliable object detection in industrial automation systems. Part of the Leuze Series 25C family, this sensor uses the diffuse reflection principle with background suppression to detect objects while reducing interference from reflective or changing background surfaces. Its high switching frequency and short response time make it suitable for high-speed conveyor systems, packaging machinery, and automated production lines. Engineers commonly use this sensor where stable detection across different object colors and materials is required.

Key Features

• Diffuse reflection principle with background suppression
• Operating range up to 900 mm on white 90% targets
• Operating range up to 650 mm on gray 18% targets
• Operating range up to 550 mm on black 6% targets
• Black-white error less than 10% up to 350 mm
• Adjustment range from 50 mm to 900 mm
• Red LED light source with 640 nm wavelength
• PNP transistor switching output with light switching principle
• 1,500 Hz switching frequency with 0.33 ms response time
• Supply voltage: 10 to 30 V DC
• M12 4-pin A-coded male connector connection
• IP67 and IP69K protection ratings
• ECOLAB compatible housing material
• Polarity reversal protection and short-circuit protection
• Certified to IEC 60947-5-2 with c UL US approval

Where This Sensor Is Used

The HT25C.X/4P-M12 is commonly used in food packaging, beverage filling, pharmaceutical machinery, conveyor systems, palletizing systems, and intralogistics applications. Its IP69K protection and ECOLAB compatibility make it suitable for washdown environments and hygienic processing areas.

What's in the Box

Sensor unit only. M12 4-pin A-coded mating cable and optional mounting accessories must be ordered separately.

Buy from ProSens Automation

ProSens Automation is an authorized Leuze dealer based in Erode and Coimbatore region, Tamil Nadu, supplying genuine Leuze sensors across India. Every product comes with full manufacturer warranty. We provide technical support for sensor selection, wiring guidance, and commissioning help. Shipping available across India. 📱WhatsApp us for price & availability—or tap the enquiry button above.

Frequently Asked Questions

What is the sensing range of the Leuze HT25C.X/4P-M12? The sensor provides a guaranteed operating range up to 900 mm on white 90% targets. Detection range varies depending on target reflectivity, with up to 650 mm on gray targets and 550 mm on black targets. Is the HT25C.X/4P-M12 suitable for washdown environments? Yes. The sensor has IP67 and IP69K protection ratings and uses ECOLAB compatible materials. It operates in ambient temperatures from -40 °C to 60 °C, making it suitable for demanding industrial environments. What accessories are required for installation? The package includes the sensor unit only. A compatible M12 4-pin A-coded mating cable and optional mounting hardware must be ordered separately. Where can I buy the Leuze HT25C.X/4P-M12 in India? ProSens Automation is an authorized Leuze dealer in Erode and Coimbatore region, Tamil Nadu. We supply genuine Leuze products across India with full manufacturer warranty. WhatsApp us for pricing and delivery timeline.
