Leuze make HT25C.XL/4P-200-M12 Polarized retro-reflective photoelectric sensor – 50139624

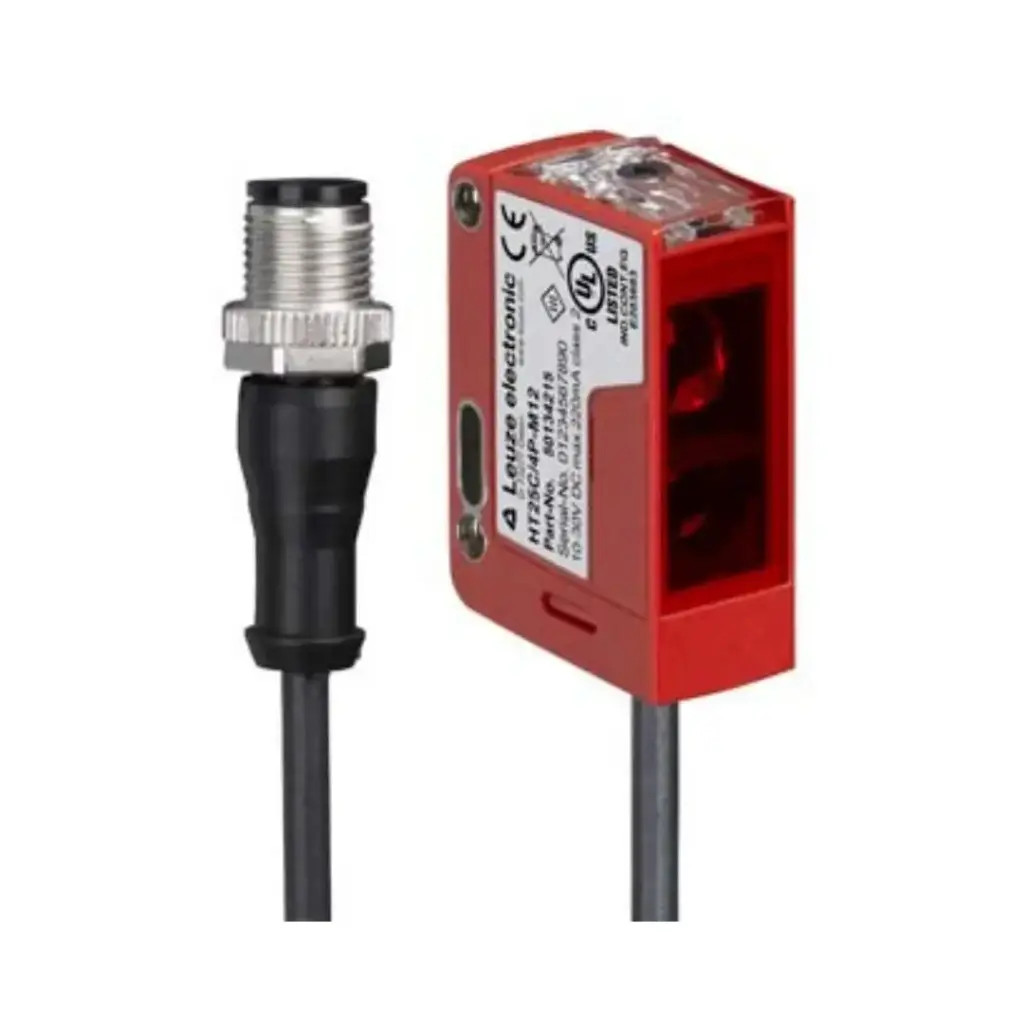

Leuze HT25C.XL/4P-200-M12 – Diffuse Sensor with Background Suppression, Series 25C

The Leuze HT25C.XL/4P-200-M12 is a diffuse sensor with background suppression designed for reliable object detection in industrial automation systems. Part of the Leuze Series 25C family, this sensor uses the diffuse reflection principle with background suppression to detect objects while minimizing interference from reflective or changing background surfaces. The divergent beam path and rectangular light spot geometry help provide stable detection across wider target areas. Engineers commonly use this sensor in conveyor systems, packaging machinery, and material handling applications where fast response time and reliable detection are required.

Key Features

• Diffuse reflection principle with background suppression
• Operating range up to 600 mm on white 90% targets
• Operating range up to 500 mm on gray 18% targets
• Operating range up to 450 mm on black 6% targets
• Black-white error less than 10% up to 350 mm
• Adjustment range from 50 mm to 600 mm
• Divergent beam path with rectangular light spot geometry
• Light spot size: 15 mm x 40 mm at 300 mm sensing distance
• Red LED light source with 640 nm wavelength
• PNP transistor switching output with dark switching principle
• 1,000 Hz switching frequency with 0.5 ms response time
• Supply voltage: 10 to 30 V DC
• Integrated 2 m PUR cable connection with 4-wire configuration
• IP67 and IP69K protection ratings
• ECOLAB compatible housing material
• Certified to IEC 60947-5-2 with c UL US approval

Where This Sensor Is Used

The HT25C.XL/4P-200-M12 is commonly used in food packaging, beverage filling, dairy processing, pharmaceutical machinery, conveyor systems, and intralogistics applications. Its IP69K protection and ECOLAB compatibility make it suitable for washdown environments and hygienic industrial areas.

What's in the Box

Sensor unit with integrated 2 m PUR cable.

Buy from ProSens Automation

ProSens Automation is an authorized Leuze dealer based in Erode and Coimbatore region, Tamil Nadu, supplying genuine Leuze sensors across India. Every product comes with full manufacturer warranty. We provide technical support for sensor selection, wiring guidance, and commissioning help. Shipping available across India. 📱WhatsApp us for price & availability—or tap the enquiry button above.

Frequently Asked Questions

What is the sensing range of the Leuze HT25C.XL/4P-200-M12? The sensor provides a guaranteed operating range up to 600 mm on white 90% targets. Detection range varies depending on target reflectivity, with up to 500 mm on gray targets and 450 mm on black targets. Is the HT25C.XL/4P-200-M12 suitable for washdown applications? Yes. The sensor has IP67 and IP69K protection ratings and features ECOLAB compatible materials. It operates in temperatures from -40 °C to 60 °C, making it suitable for food and beverage processing environments. What is included with the sensor? The package includes the sensor unit with integrated 2 m PUR cable connection. No additional connector cable is required for standard installation. Where can I buy the Leuze HT25C.XL/4P-200-M12 in India? ProSens Automation is an authorized Leuze dealer in Erode and Coimbatore region, Tamil Nadu. We supply genuine Leuze products across India with full manufacturer warranty. WhatsApp us for pricing and delivery timeline.
