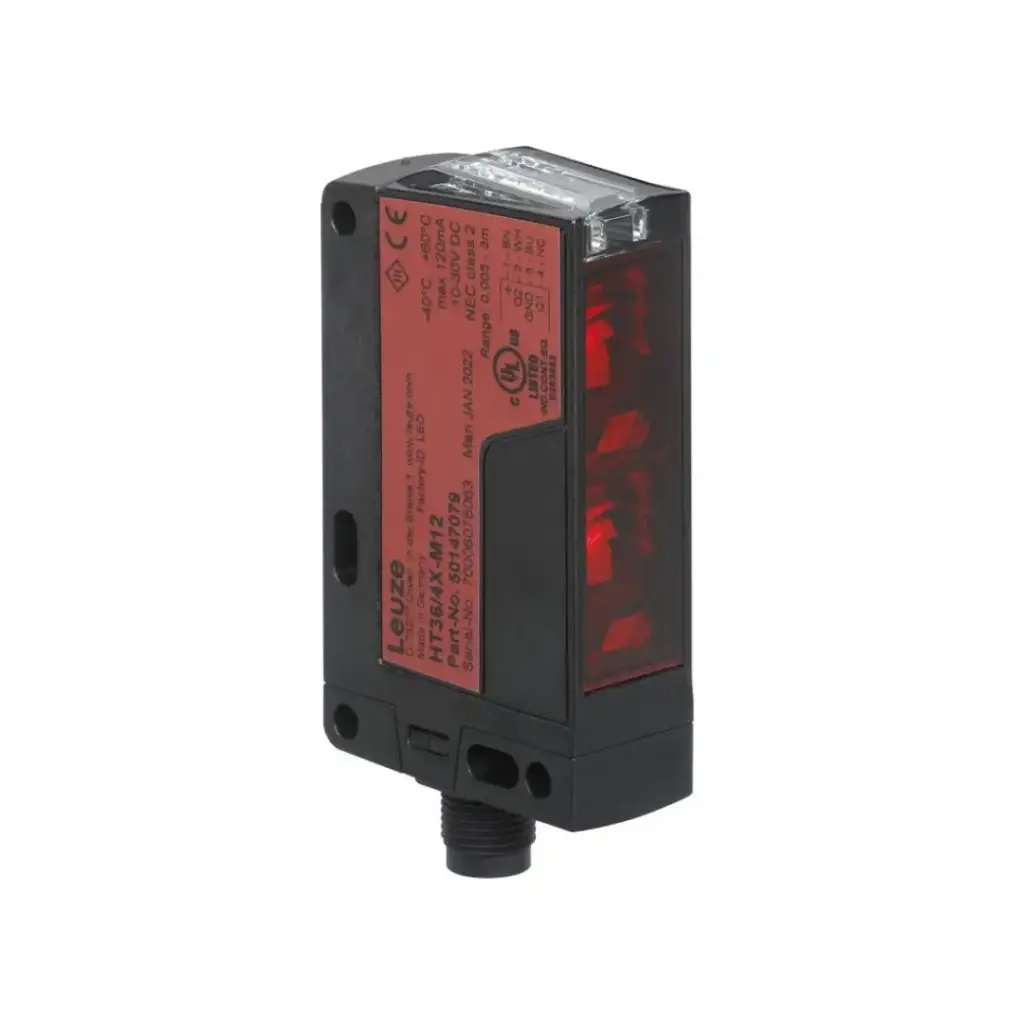

Leuze HT36/4X-M12 – Diffuse Sensor with Background Suppression, Series 36

The Leuze HT36/4X-M12 is a diffuse sensor with background suppression designed for reliable object detection over long sensing distances. Part of the Leuze Series 36 family, this sensor uses the diffuse reflection principle with background suppression to detect objects while minimizing interference from background surfaces. Its extended sensing range of up to 2.5 m makes it suitable for conveyor systems, pallet handling, and industrial automation applications where longer detection distances are required. Engineers commonly use this sensor for stable object detection across varying target colors and materials.

Key Features

• Diffuse reflection principle with background suppression
• Operating range up to 2.5 m on white 90% targets
• Operating range up to 1.5 m on gray 18% targets
• Operating range up to 1.1 m on black 6% targets
• Black-white error less than 10% up to 800 mm
• Adjustment range from 150 mm to 2,500 mm
• Focused red LED light source with 645 nm wavelength
• PNP transistor switching output with light switching principle
• 250 Hz switching frequency
• 2 ms response time
• Supply voltage: 10 to 30 V DC
• M12 4-pin A-coded male connector
• PC-PBT housing with PMMA lens cover
• IP67 protection rating
• Polarity reversal protection and short-circuit protection
• Certified to IEC 60947-5-2 with c UL US approval

Where This Sensor Is Used

The HT36/4X-M12 is commonly used in conveyor systems, palletizing equipment, intralogistics installations, packaging machinery, and automotive production lines. Its long sensing distance makes it suitable for object detection over larger conveyor widths and material handling applications.

What's in the Box

Sensor unit only. Compatible M12 4-pin A-coded mating cable and optional mounting accessories must be ordered separately.

Buy from ProSens Automation

ProSens Automation is an authorized Leuze dealer based in Erode and Coimbatore region, Tamil Nadu, supplying genuine Leuze sensors across India. Every product comes with full manufacturer warranty. We provide technical support for sensor selection, wiring guidance, and commissioning help. Shipping available across India. 📱WhatsApp us for price & availability—or tap the enquiry button above.

Frequently Asked Questions

What is the sensing range of the Leuze HT36/4X-M12? The sensor provides a guaranteed operating range from 0.01 m to 2.5 m on white 90% targets. Detection range varies depending on target reflectivity, with up to 1.5 m on gray targets and 1.1 m on black targets. Is the HT36/4X-M12 suitable for industrial environments? Yes. The sensor has an IP67 protection rating and operates in ambient temperatures from -40 °C to 60 °C. It complies with IEC 60947-5-2 and carries c UL US approval. What is included in the package? The package includes the sensor unit only. A compatible M12 4-pin A-coded mating cable and optional mounting hardware must be ordered separately. Where can I buy the Leuze HT36/4X-M12 in India? ProSens Automation is an authorized Leuze dealer in Erode and Coimbatore region, Tamil Nadu. We supply genuine Leuze products across India with full manufacturer warranty. WhatsApp us for pricing and delivery timeline.
