Leuze HT46CL2-4P-200-M12 – Diffuse Laser Sensor | 50134609 | ProSens Automation
Product Description

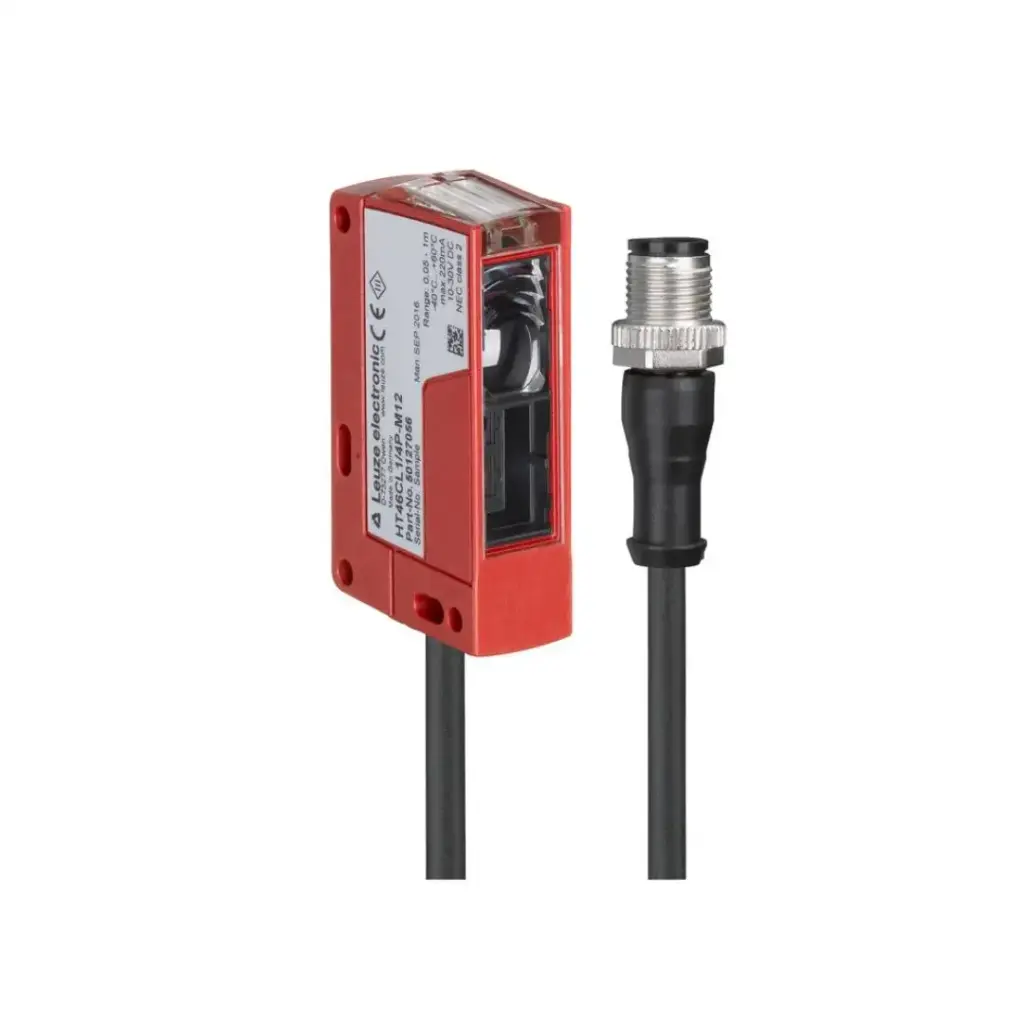

Leuze HT46CL2-4P-200-M12 – Diffuse Laser Sensor with Background Suppression, Series 46C
The Leuze HT46CL2-4P-200-M12 is a diffuse laser sensor with background suppression from the Series 46C family. It uses a Class 2 red laser to provide highly accurate object detection while minimizing false switching caused by background surfaces. The diffuse reflection principle with background suppression makes it ideal for detecting small components and precise positioning tasks in industrial automation.
Key Features
- Diffuse reflection principle with background suppression
- Series 46C compact laser sensor
- Operating range: 20…200 mm
- Class 2 red laser light source, 650 nm wavelength
- Fine laser spot for precise object detection
- PNP transistor output (Light ON / Dark ON)
- Switching frequency: 3,000 Hz
- Response time: 0.16 ms
- Supply voltage: 10…30 VDC
- 4-pin M12 male connector, die-cast zinc housing with glass front, IP67/IP69K protection, ECOLAB approved and cULus certified
Where This Sensor Is Used
The HT46CL2-4P-200-M12 is ideal for pharmaceutical machinery, electronics assembly, packaging equipment, conveyor systems, laboratory automation, automotive manufacturing and precision machine tools. Its focused laser beam enables reliable detection of small parts, narrow edges and accurately positioned objects.
What's in the Box
Sensor unit only. A compatible 4-pin M12 female connection cable must be ordered separately.
Buy from ProSens Automation
ProSens Automation is an authorized Leuze dealer based in Erode and Coimbatore region, Tamil Nadu, supplying genuine Leuze sensors across India. Every product comes with full manufacturer warranty. We provide technical support for sensor selection, wiring guidance, and commissioning help. Shipping available across India.
📱WhatsApp us for price & availability—or tap the enquiry button above.
Frequently Asked Questions
What is the sensing range of the HT46CL2-4P-200-M12?
The sensor provides a sensing range from 20 mm to 200 mm using a Class 2 red laser. The focused laser spot delivers high accuracy for detecting small objects and fine details.
Can this sensor be used in harsh industrial environments?
Yes. The sensor is rated IP67 and IP69K, operates from -40°C to +60°C, and features an ECOLAB-approved die-cast zinc housing for demanding industrial environments.
What is included with the sensor?
The package contains the sensor unit only. A compatible 4-pin M12 female connection cable should be ordered separately.
Where can I buy the Leuze HT46CL2-4P-200-M12 in India?
ProSens Automation is an authorized Leuze dealer in Erode and Coimbatore region, Tamil Nadu. We supply genuine Leuze products across India with full manufacturer warranty. WhatsApp us for pricing and delivery timeline.
