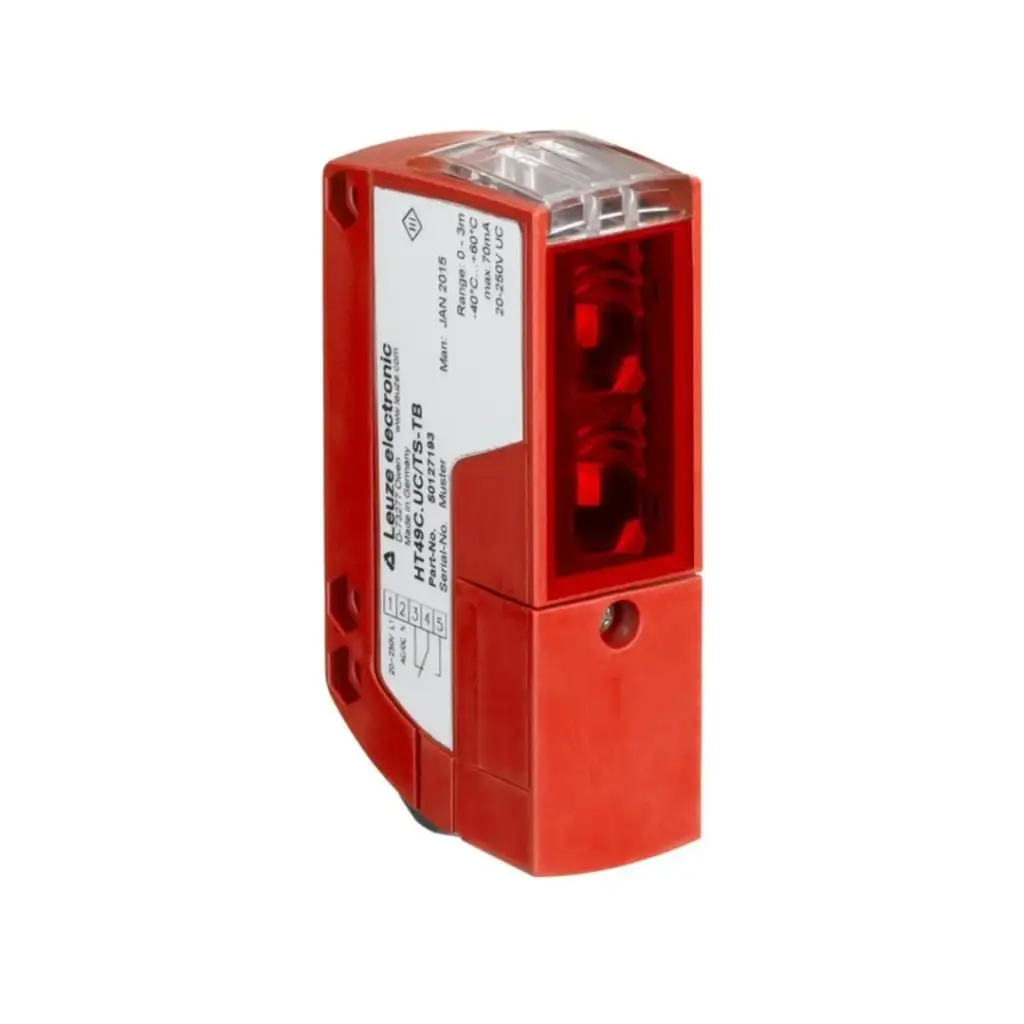

Leuze HT49C.UC/TS-TB – Diffuse Sensor | 50127193 | ProSens Automation
Product Description
Leuze HT49C.UC/TS-TB – Diffuse Sensor with Background Suppression, Series 49C
The Leuze HT49C.UC/TS-TB is a diffuse reflection sensor with background suppression from the Series 49C family. It is designed for reliable long-range object detection while minimizing false switching caused by reflective backgrounds. Using the diffuse reflection principle with background suppression, it provides dependable performance in industrial automation systems operating on AC or DC supply.
Key Features
- Diffuse reflection principle with background suppression
- Series 49C heavy-duty photoelectric sensor
- Operating range: 5 mm to 3 m (white target)
- Adjustment range: 120 mm to 3,000 mm
- Red LED light source, 630 nm wavelength
- Relay outputs: 1 NC + 1 NO, light/dark reversible
- Switching frequency: 25 Hz
- Response time: 20 ms
- 20–250 V AC/DC universal supply voltage
- 5-pin spring-cage terminal connection, PC housing, IP67/IP69K protection, Class II insulation, cULus certified
Where This Sensor Is Used
The HT49C.UC/TS-TB is suitable for conveyor systems, palletizing equipment, packaging machinery, warehouse automation, textile machinery, wood processing machines and material handling applications. Its relay outputs allow direct interfacing with AC and DC control systems, making it ideal for industrial machine builders.
What's in the Box
Sensor unit only with integrated spring-cage terminal compartment. Mounting bracket is optional and available separately.
Buy from ProSens Automation
ProSens Automation is an authorized Leuze dealer based in Erode and Coimbatore region, Tamil Nadu, supplying genuine Leuze sensors across India. Every product comes with full manufacturer warranty. We provide technical support for sensor selection, wiring guidance, and commissioning help. Shipping available across India.
📱WhatsApp us for price & availability—or tap the enquiry button above.
Frequently Asked Questions
What is the sensing range of the HT49C.UC/TS-TB?
The sensor detects white objects from 5 mm up to 3 m. The sensing distance is adjustable from 120 mm to 3,000 mm using the built-in potentiometer and teach button.
Can this sensor operate directly on AC power?
Yes. The HT49C.UC/TS-TB operates from 20–250 V AC/DC and provides relay NO and NC outputs, making it suitable for direct integration into AC or DC industrial control circuits.
What is included with the sensor?
The package contains the sensor with an integrated 5-pin spring-cage terminal compartment. Mounting brackets can be ordered separately if required.
Where can I buy the Leuze HT49C.UC/TS-TB in India?
ProSens Automation is an authorized Leuze dealer in Erode and Coimbatore region, Tamil Nadu. We supply genuine Leuze products across India with full manufacturer warranty. WhatsApp us for pricing and delivery timeline.
