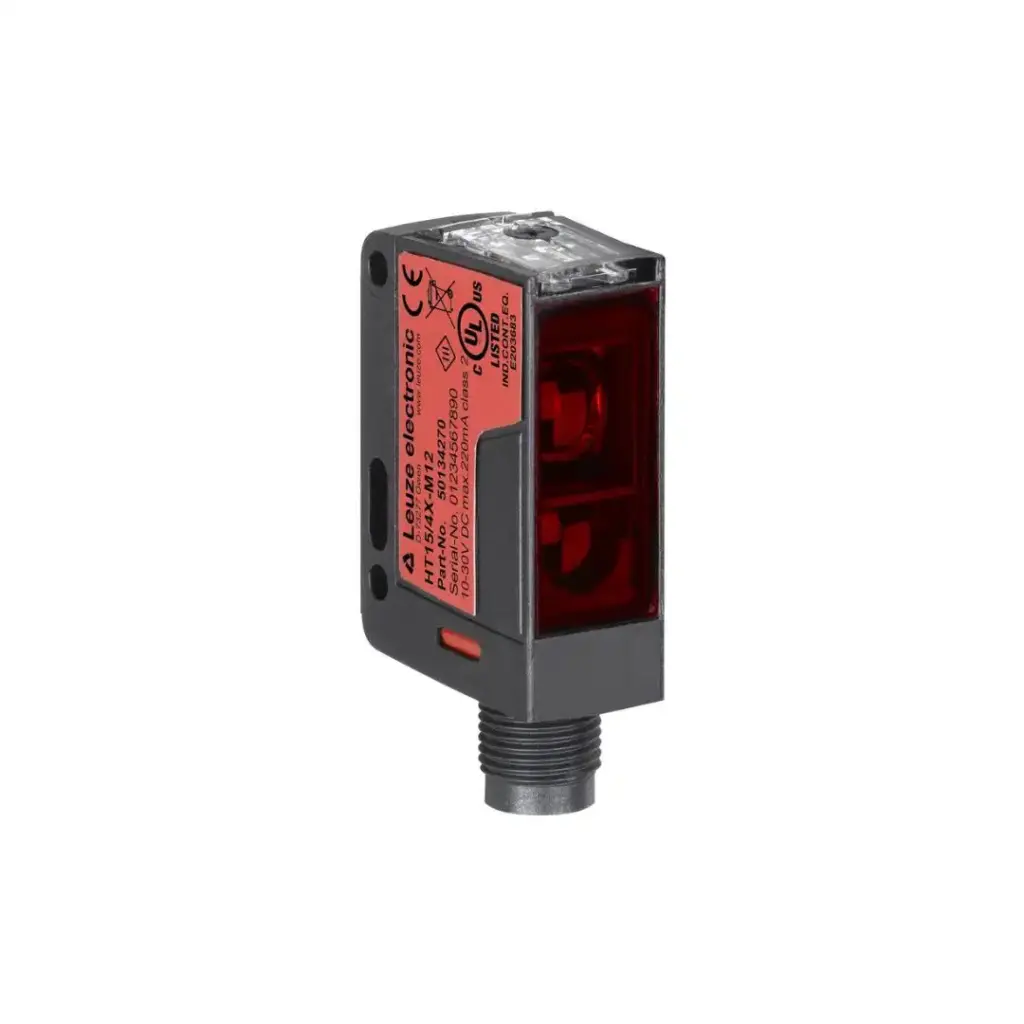

Leuze HT15/2X-M12 – Diffuse Sensor with Background Suppression, Series 15
The Leuze HT15/2X-M12 is a diffuse sensor with background suppression designed for stable object detection even when background surfaces are present behind the target. Part of the Leuze Series 15 family, this sensor uses the diffuse reflection principle with background suppression to detect objects while minimizing unwanted background reflections.
Engineers commonly use this sensor in conveyor systems and industrial machinery where object color variations and background reflections can affect standard diffuse sensors. The adjustable sensing range allows flexible setup for different product sizes and installation distances.
Key Features
- Diffuse reflection principle with background suppression
- Operating range up to 1 m on white 90% targets
- Operating range up to 700 mm on gray 18% targets
- Operating range up to 500 mm on black 6% targets
- Black-white error less than 15% up to 350 mm
- Adjustment range from 50 mm to 1,000 mm
- Red LED light source with 640 nm wavelength
- NPN transistor switching output with light switching principle
- 500 Hz switching frequency with 1 ms response time
- Supply voltage: 10 to 30 V DC
- M12 4-pin A-coded male connector connection
- ABS plastic housing with IP67 protection rating
- Polarity reversal protection and short-circuit protection
- Certified to IEC 60947-5-2 with c UL US approval
Where This Sensor Is Used
The HT15/2X-M12 is commonly used in food packaging, pharmaceutical machinery, conveyor systems, intralogistics, textile machinery, and automotive automation applications. It is suitable for object presence detection, carton detection, package positioning, and product handling applications where background suppression improves detection stability.
What's in the Box
Sensor unit only. M12 mating cable and optional mounting accessories must be ordered separately.
Buy from ProSens Automation
ProSens Automation is an authorized Leuze dealer based in Erode and Coimbatore region, Tamil Nadu, supplying genuine Leuze sensors across India. Every product comes with full manufacturer warranty. We provide technical support for sensor selection, wiring guidance, and commissioning help. Shipping available across India.
📱
WhatsApp us for price & availability—or tap the enquiry button above.
Frequently Asked Questions
What is the sensing range of the Leuze HT15/2X-M12?
The sensor provides a guaranteed operating range from 12 mm to 1 m on white 90% targets. Detection range varies based on target reflectivity, with up to 700 mm on gray targets and 500 mm on black targets.
Is the HT15/2X-M12 suitable for industrial environments?
Yes. The sensor has an IP67 protection rating and operates in ambient temperatures from -40 °C to 60 °C. It also complies with IEC 60947-5-2 and includes c UL US approval.
What accessories are required for installation?
The package includes the sensor unit only. An M12 4-pin A-coded mating cable and optional mounting hardware must be ordered separately.
