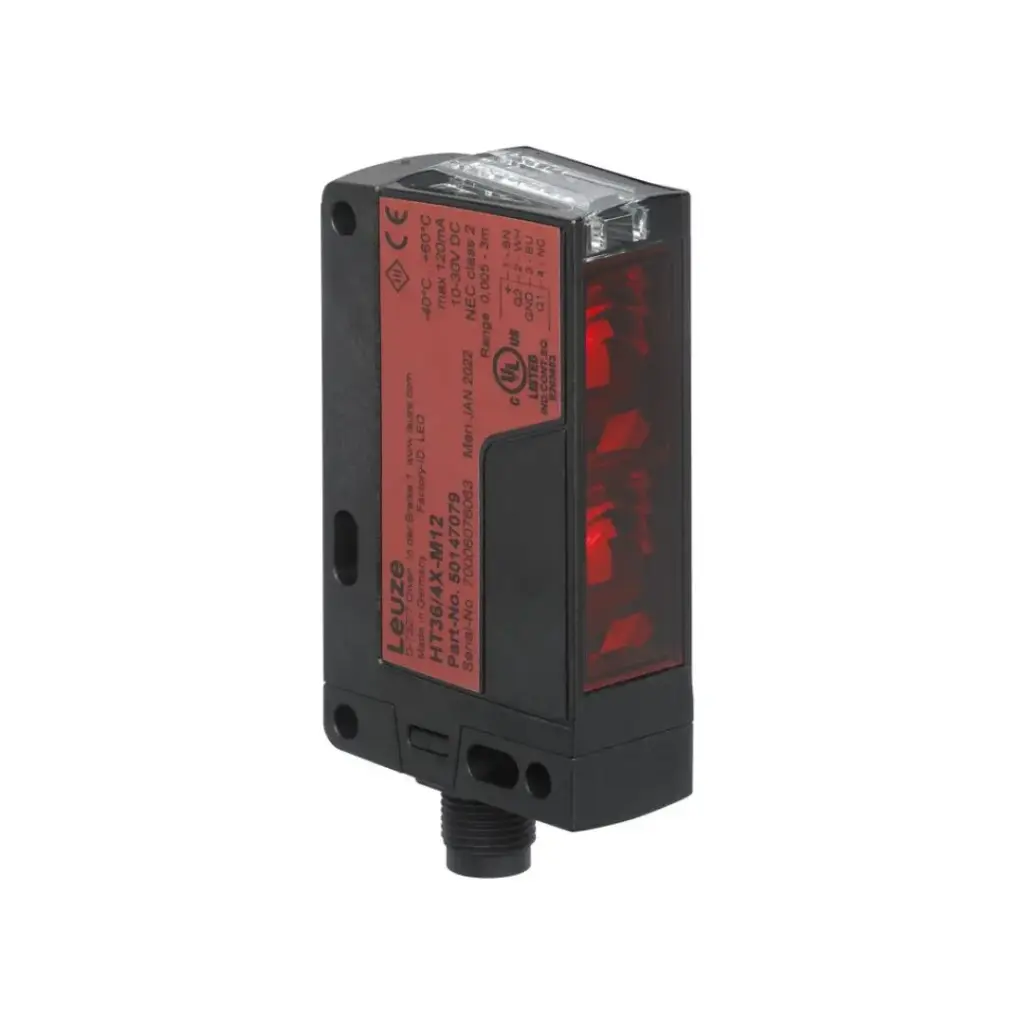

Leuze HT36I/4X-M12 – Diffuse Sensor with Background Suppression, Series 36
The Leuze HT36I/4X-M12 is a diffuse sensor with background suppression from the Series 36 family. It detects objects using the diffuse reflection principle with background suppression, allowing reliable sensing even when background surfaces are present behind the target.
With an operating range up to 2.5 m and infrared light technology, this sensor is suitable for object detection tasks in conveyor systems, material handling equipment and machine automation applications where stable switching performance is required.
Key Features
- Diffuse reflection principle with background suppression
- Operating range: 0.01 m to 2.5 m
- Adjustment range: 150 mm to 2,500 mm
- Infrared LED light source
- Wavelength: 860 nm
- PNP light-switching transistor output
- Switching frequency: 250 Hz
- Response time: 2 ms
- Supply voltage: 10–30 V DC
- M12 4-pin male connector
- IP67 protection rating
- Operating temperature: -40°C to +60°C
- IEC 60947-5-2 compliant
- cULus approved
Where This Sensor Is Used
The HT36I/4X-M12 is commonly used in conveyor systems, packaging equipment, sorting systems, machine automation, material handling applications and intralogistics installations.
It is suitable for detecting cartons, products, trays and moving objects where background suppression helps improve detection reliability.
What's in the Box
Sensor unit only.
Recommended accessory: M12 4-pin connection cable such as Leuze KD U-M12-4A-V1-050 or KD U-M12-4W-V1-050.
Buy from ProSens Automation
ProSens Automation is an authorized Leuze dealer based in Erode and Coimbatore region, Tamil Nadu, supplying genuine Leuze sensors across India.
Every product comes with full manufacturer warranty. We provide technical support for sensor selection, wiring guidance, and commissioning help.
Shipping available across India.
📱
WhatsApp us for price & availability — or tap the enquiry button above.
Frequently Asked Questions
What is the sensing range of the HT36I/4X-M12?
The sensor provides an operating range from 0.01 m to 2.5 m. The sensing distance can be adjusted from 150 mm to 2,500 mm using the multiturn potentiometer.
Can this sensor be used in industrial environments?
Yes. The sensor has an IP67 protection rating and operates from -40°C to +60°C. It also complies with IEC 60947-5-2.
What is supplied with the sensor?
The package contains the sensor unit only. M12 connection cables must be ordered separately.
Where can I buy the Leuze HT36I/4X-M12 in India?
ProSens Automation is an authorized Leuze dealer in Erode and Coimbatore region, Tamil Nadu. We supply genuine Leuze products across India with full manufacturer warranty. WhatsApp us for pricing and delivery timeline.
