Meanwell MDR-60-48 – DIN Rail Mount AC/DC Power Supply, MDR-60 Series

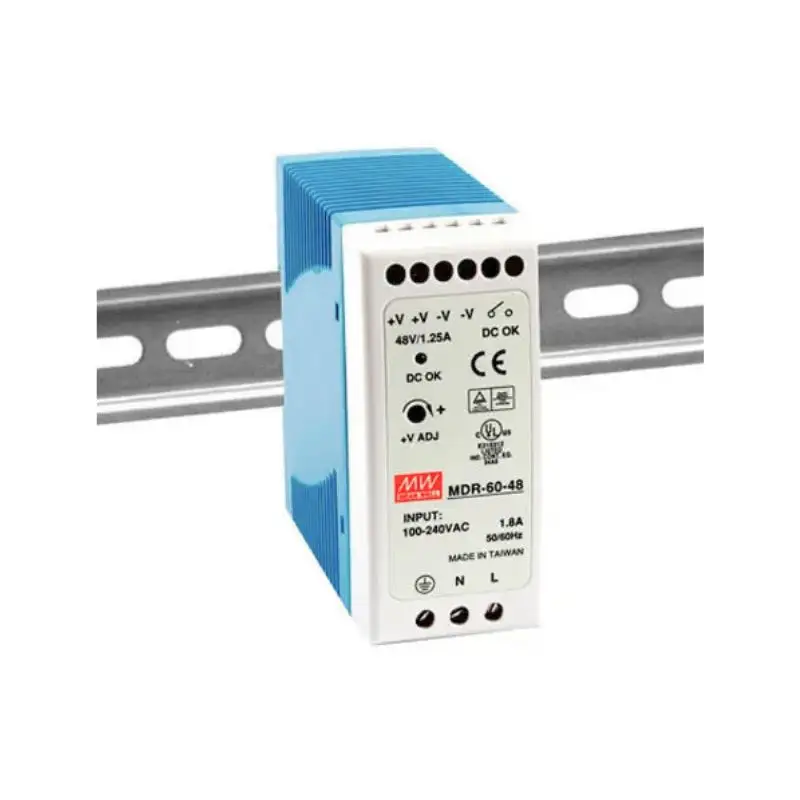

The Meanwell MDR-60-48 is a 60W single output DIN rail mount AC/DC power supply from the MDR-60 Series. It converts universal AC input voltage into a regulated 48V DC output for industrial automation, PLC panels and electrical control cabinets. The built-in DC OK relay contact enables remote monitoring of the power supply status for industrial applications.

The MDR-60 Series operates with universal AC input and uses free air convection cooling. It incorporates short circuit, overload and over voltage protection while providing stable 48V DC power for continuous industrial operation.

Key Features

• Model: MDR-60-48
• Series: MDR-60 Series
• DIN Rail Mount AC/DC Power Supply
• Output Voltage: 48V DC
• Rated Current: 1.25A
• Rated Power: 60W
• Universal Input: 85–264VAC or 120–370VDC
• Frequency Range: 47–63Hz
• Output Voltage Adjustment: 48–56V DC
• Efficiency: 87% (Typical)
• Ripple & Noise: 200mVp-p
• Overload Protection: 105–150% rated output power with constant current limiting
• Over Voltage Protection: 57.6–64.8V
• Working Temperature: -20°C to +70°C
• Working Humidity: 20–90% RH non-condensing
• Cooling Method: Free Air Convection
• DC OK Relay Contact: 30V/1A resistive
• LED Indicator for Power ON
• DIN Rail Mounting: TS-35/7.5 or TS-35/15
• Dimensions: 40 × 90 × 100 mm (W × H × D)
• Weight: 287g
• Warranty: 3 Years

Where This SMPS Is Used

The MDR-60-48 is suitable for industrial control panels, PLC systems, factory automation, building automation and machine control cabinets requiring a regulated 48V DC power supply.

Typical applications include conveyor systems, packaging machinery, textile machinery, process control equipment, laboratory automation, industrial instrumentation and communication systems.

What's in the Box

• Meanwell MDR-60-48 DIN Rail Power Supply
• User documentation

Buy from ProSens Automation

ProSens Automation is a partner for Meanwell based in Erode and Coimbatore region, Tamil Nadu, supplying genuine Meanwell products across India. Every product comes with full manufacturer warranty. We provide technical support for power supply selection, wiring guidance and commissioning support. Shipping available across India.

📱 WhatsApp us for price & availability or tap the enquiry button above.

Frequently Asked Questions

What output does the MDR-60-48 provide?

The MDR-60-48 provides a regulated 48V DC output with a rated current of 1.25A and rated power of 60W. The output voltage can be adjusted between 48V and 56V DC.

Does the MDR-60-48 provide a power status signal?

Yes. It includes a DC OK relay contact with a maximum contact rating of 30V/1A resistive for remote monitoring of the power supply status.

What is included with the MDR-60-48?

The package contains the Meanwell MDR-60-48 power supply. DIN rail is not included and should be available inside the control panel.
